What Is a Moisture Meter and Why Do You Need One?

A moisture meter is a handheld device that measures the water content in materials like wood, plaster, masonry, and concrete. Simple as that. If you own a property in the UK — particularly an older one — you'll know that damp is the enemy. I've been dealing with Victorian-era terraces around East Belfast for years, and trust me, a decent damp meter pays for itself the first time it catches rising damp before it ruins a skirting board.

Why bother? Because visible mould is the late stage. By the time you see black spots on your bedroom wall, moisture has been building for weeks or months. A moisture meter for walls catches the problem early — when readings creep above 17% in masonry, you know something's off before the plaster starts bubbling.

And no, before anyone asks — these aren't skincare gadgets. I've genuinely had someone at a car boot sale ask if a damp meter would help with dry skin. It won't. These are construction and DIY tools, full stop.

Pin vs. Pinless Moisture Meters: Which Technology Suits Your Job?

Two main technologies exist, and they serve different purposes. Pin-type meters use two metal probes that penetrate the surface to measure electrical resistance between them. Pinless meters use electromagnetic sensors to scan beneath the surface without leaving marks.

Pin-Type Meters

These give you precise, localised readings. You push the pins 5–10mm into the material and get an exact moisture percentage at that depth. Brilliant for pinpointing the source of a leak. The downside? They leave tiny holes. On a painted wall or finished timber floor, that's not ideal.

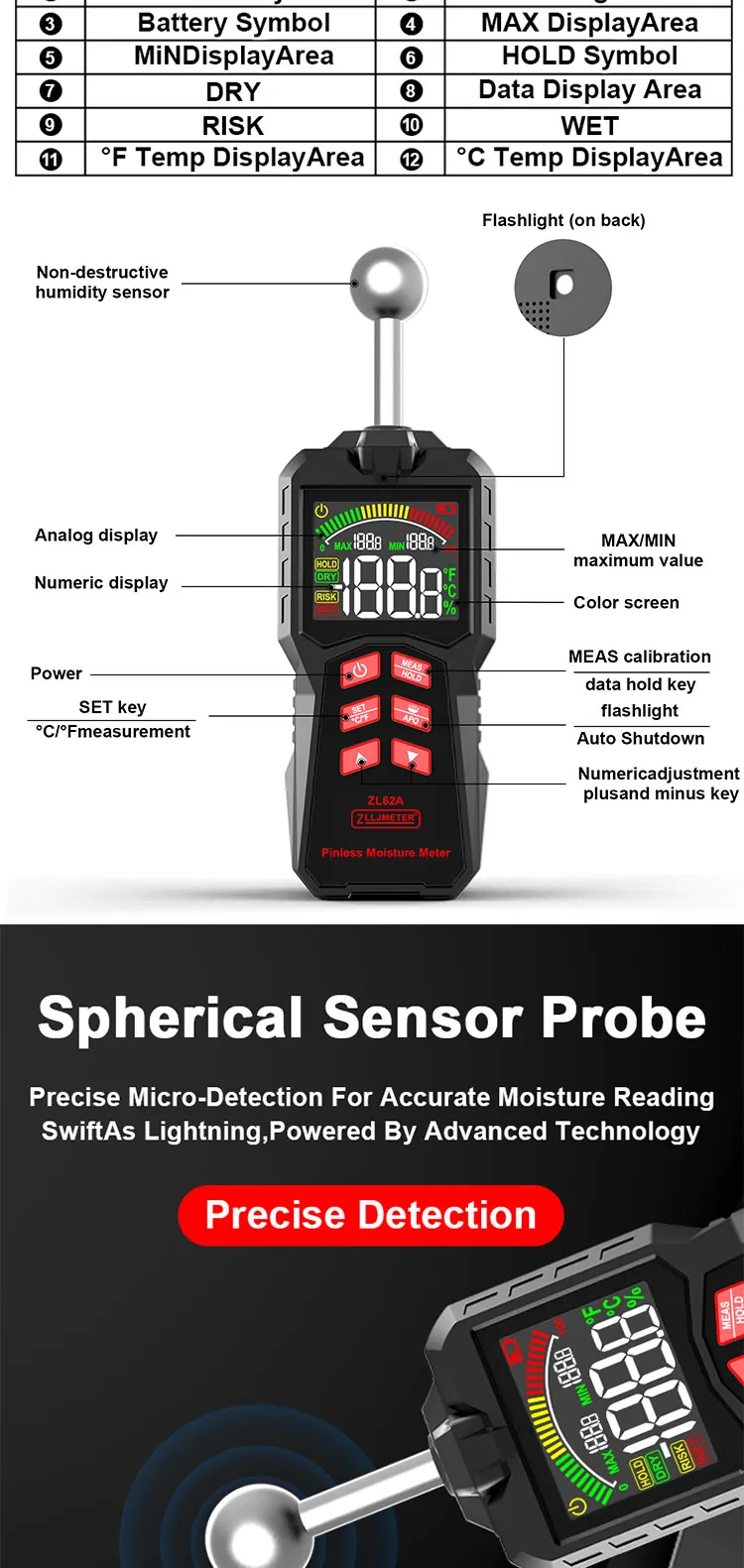

Pinless (Non-Invasive) Moisture Meters

A pinless moisture meter scans up to 20–40mm below the surface using radio frequency signals. No damage. You can sweep across an entire wall in seconds. The trade-off is that readings are averaged across the scan depth, so you won't get the same pinpoint accuracy as pins.

Honestly, I've tried using pin-only meters on plastered walls and it's a pain — you end up with a connect-the-dots pattern across your hallway. For most homeowners, a non invasive moisture meter makes far more sense for initial surveys.

Using a Moisture Meter for Walls, Plaster, and Masonry

A moisture meter for walls is the single most useful diagnostic tool for any UK homeowner dealing with damp. Whether it's condensation, penetrating damp, or rising damp, the meter tells you what's actually happening inside the wall rather than leaving you guessing from surface stains.

Reading Masonry and Brick

For a moisture meter for masonry, you're looking at WME (wood moisture equivalent) readings. Most meters display this scale even on non-wood materials. Here's the rough guide:

I test at three heights on each wall: 150mm from the floor, mid-height, and near the ceiling. Rising damp shows a clear gradient — high at the bottom, dry at the top. Condensation tends to be worst at cold spots near windows and external corners.

Testing Plaster

A moisture meter for plaster works best in pinless mode. Plaster is soft and crumbly when damp, so pushing pins in can cause unnecessary damage. The Proster pinless damp meter scans through standard UK plaster thickness (12–15mm) without leaving a mark. Spot on for rental inspections where you can't go poking holes in walls.

Mapping Damp Patterns

Here's a trick I picked up: use masking tape and a marker. Take readings on a grid pattern — every 300mm across the wall — and note the percentage on each tape square. Within ten minutes you've got a visual moisture map showing exactly where the damp is concentrated. Dead useful when you're trying to explain the problem to a builder or landlord.

The GOV.UK housing standards guidance states that landlords must address damp and mould issues promptly. Having documented meter readings strengthens any complaint.

Testing Concrete and Floors

A moisture meter for concrete is essential before laying any floor covering. Get this wrong and you'll have laminate buckling within six months. I've seen it happen — a mate laid engineered oak over a concrete slab that read 4.5% relative humidity on the surface but was actually holding 75% RH at depth. Expensive mistake.

Why Concrete Is Tricky

Concrete cures slowly. A freshly poured slab takes roughly one month per 25mm of thickness to dry to acceptable levels. A standard 100mm garage floor? Four months minimum, often longer in UK weather conditions. Pin meters struggle here because concrete is too hard for standard probes. You need either a pinless damp meter or specialist deep-probe attachments.

Acceptable Readings for Floor Coverings

That said, most handheld meters give you a comparative reading on concrete rather than an absolute RH percentage. For definitive results on new builds, you'd pair your meter with a hygrometer hood test. But for checking an existing floor before re-covering? A decent damp meter for walls and floors like the Proster unit gives you enough data to make a sensible decision.

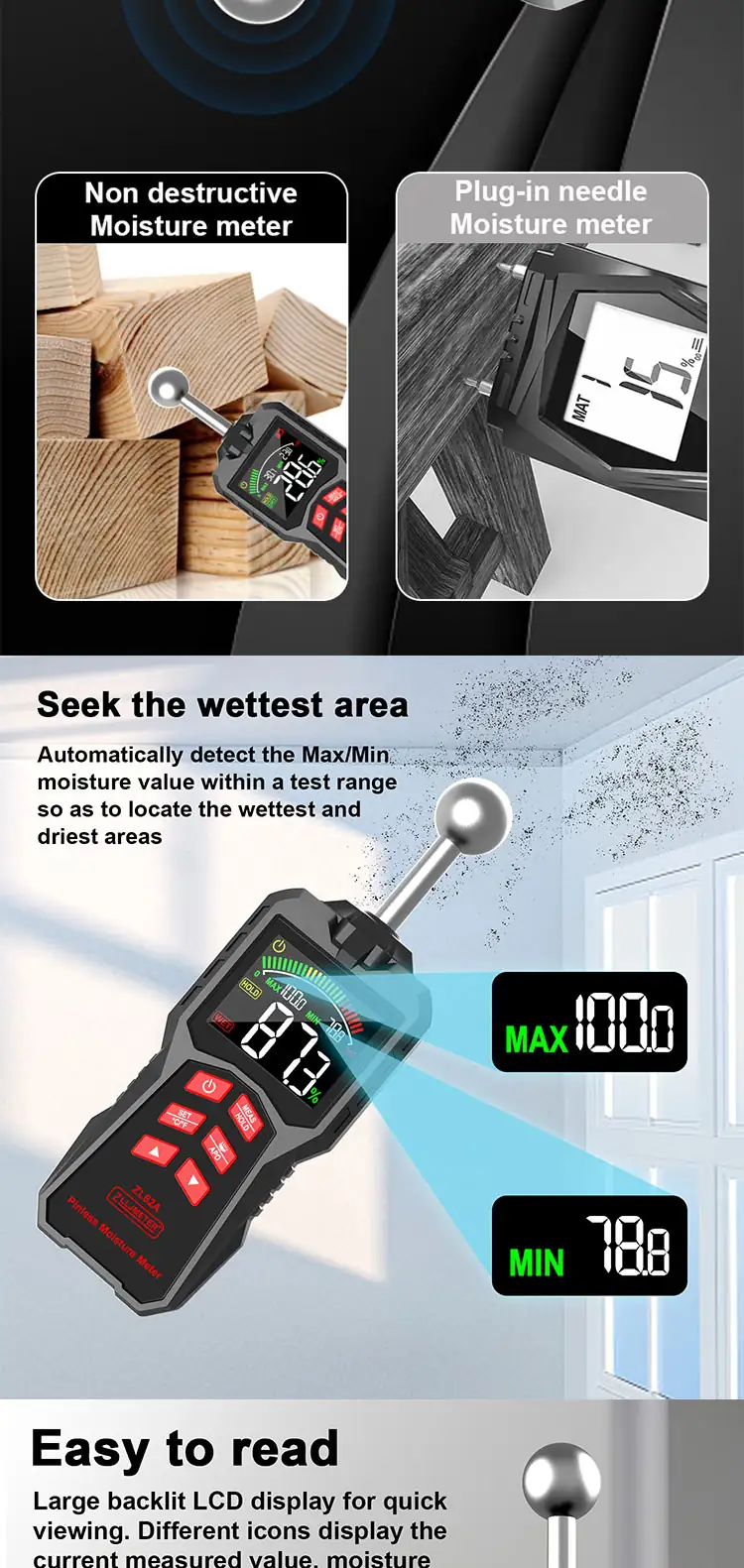

Wood Moisture Meters and Seasoning Firewood

A wood moisture meter is non-negotiable if you burn logs. Wet wood produces half the heat output, coats your flue with creosote, and chucks out particulates that'll have your neighbours filing complaints. Since 2022, selling wet wood (above 20% moisture) in bags under 2m³ has been illegal in England under the Air Quality regulations.

What's the Target?

You want firewood reading below 20% moisture content — ideally between 12% and 18% for best burn efficiency. Freshly felled hardwood typically reads 40–60%. That's why seasoning takes 12–24 months depending on species and storage conditions.

How to Test Properly

Don't just test the end grain. Split a log and test the freshly exposed face — that's your true internal reading. End grain dries faster and will give you a falsely optimistic number. I test three logs from different parts of the stack. If all three read under 20%, you're sorted., a favourite among Britain’s tradespeople

The Proster wood moisture meter uses pin-type probes specifically calibrated for timber species. It distinguishes between softwood and hardwood settings because density affects electrical resistance. Oak at 18% reads differently to pine at 18% — the meter compensates for this.

Storage Tips Based on Meter Readings

If your logs are reading 25–30%, they need another 3–6 months. Stack them bark-side-up in a ventilated shelter with good airflow between rows. Test monthly from October onwards. By spring 2026, most wood cut in early 2024 should be well within range if stored properly — assuming it hasn't spent the winter under a tarpaulin with no airflow, which is a surprisingly common mistake.

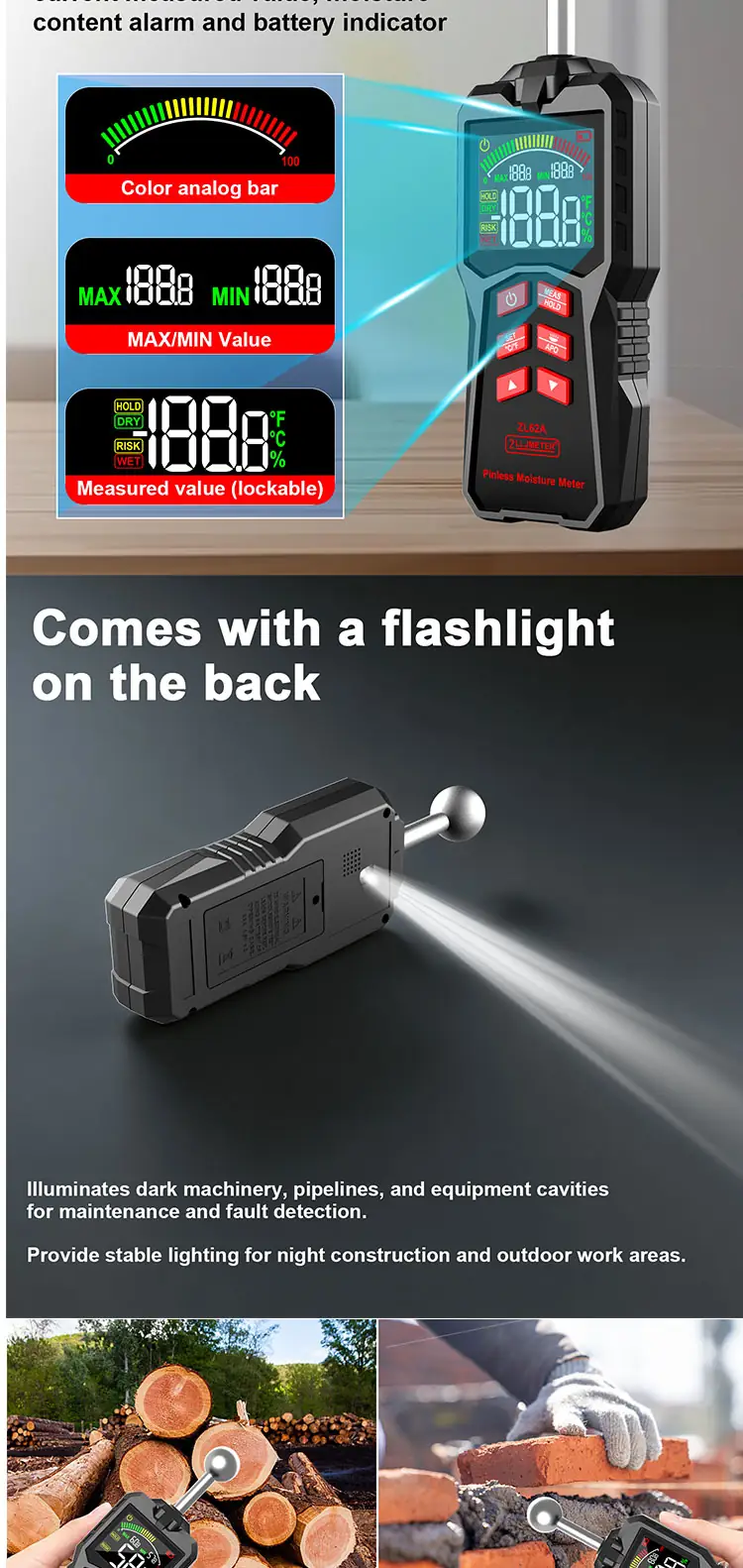

The Proster Range: Specs, Pricing, and What You Get

So what does the Proster moisture meter actually offer? At £61.14, it sits in the sweet spot between throwaway cheap meters and professional surveyor-grade kit costing £200+. Worth the extra spend over a £12 no-name unit? Absolutely.

I've been using mine since late 2025 and it's held up well. The probes are still sharp after probably 200+ readings across various jobs. Battery life is excellent — still on the original 9V after months of regular use. For a best moisture meter under £30, it's hard to argue against.

The full range is available at prostermoisture.co.uk, including their pinless model for non-destructive wall surveys and a dedicated timber unit for joiners and firewood suppliers.

Look, I know there are cheaper options on marketplace sites. I've tried a couple. One gave wildly inconsistent readings — 12% on one spot, then 28% two centimetres away on the same dry board. The Proster gives me repeatable results within ±1%, which is what you need when making decisions about treatment or repair.

Common Mistakes and How to Avoid Them

Even the best damp meter gives rubbish results if you use it wrong. Here are the errors I see most often:

1. Testing Cold Surfaces

Condensation on a cold wall will give a false high reading. Let the room reach ambient temperature before testing. Early morning readings on north-facing external walls are notoriously unreliable in winter.

2. Ignoring Calibration

Most meters ship calibrated, but check annually. Some units include a calibration reference block. If your meter reads 0% on a bone-dry piece of kiln-dried timber, you're good.

3. Single-Point Testing

One reading tells you almost nothing. You need context — multiple points, multiple heights, tested over several days. Damp fluctuates with weather, heating cycles, and occupancy patterns.

4. Wrong Mode for the Material

Using wood mode on plaster gives meaningless numbers. Always select the correct material setting. The Proster meter's building materials mode is specifically calibrated for UK construction materials — brick, block, plaster, and concrete.

5. Confusing Meter Types with Skincare

This sounds daft, but it happens more than you'd think — especially around Christmas when these get bought as gifts. A moisture meter for walls measures water content in building materials. It's not a skin hydration analyser. Different technology entirely. If you're after skin moisture readings, you need a dermatological device — not a construction tool from prostermoisture.co.uk.

Key Takeaways

• A moisture meter for walls is essential for any UK property owner — damp causes structural damage, health issues, and expensive repairs when caught late.
• Pin meters suit timber and firewood; pinless meters suit walls, plaster, and large-area surveys without surface damage.
• Normal UK interior walls read below 5% WME. Anything above 15% needs professional investigation.
• Firewood must be below 20% moisture — it's the law in England and produces significantly better heat output.
• The Proster moisture meter at £61.14 offers professional-grade accuracy with ±1% repeatability for both wood and building materials.
• Always test multiple points at different heights and over several days to build an accurate picture of damp distribution.
• Concrete floors need special attention — test before laying any covering, allowing one month drying per 25mm of slab thickness.
